Full Automatic Facial Tissue Paper Production Line

FOB Reference Price:Get Latest Price
$10,000.00 - $70,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CIL-FT-A-D
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Product Type:
Facial Tissue
Processing Type:
Paper Folding Machine
Power(W):
25KW
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Saudi Arabia
Showroom Location:
Egypt, Saudi Arabia
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Xinda Machinery
Voltage:
380V 50HZ
Dimension(L*W*H):
15x10x2
Weight:
8000kg
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Full Automatic Facial Tissue Paper Production Line
Speed:
100m/min
Output paper:
Facial Paper
Function:
Embossing Folding Cutting and Packing
Product name:
High Speed Facial Tissue Paper Making Machine
Type:
PAPER CONVERTING MACHINE
Usage:
Making Facial Tissue Paper
Machine type:
Facial Tissue Paper Processing Machine
Application:
Paper Industry
Warranty:
1 Year
Production Capacity:
100m/min
Product Certification certification
CE Certified.
Valid from 2011-06-09 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Year Full Automatic Facial Tissue Paper Production Line
Packaging & Delivery
Packaging Details
Full Automatic Facial Tissue Paper Production Line
in wooden case packing machine
Port
Xiamen Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 To be negotiated
Products Show

Full Automatic Facial Tissue Production Line CIL-FT-A-D

Video Link:
https://youtu.be/3vjRRfCPHN0

Product Description

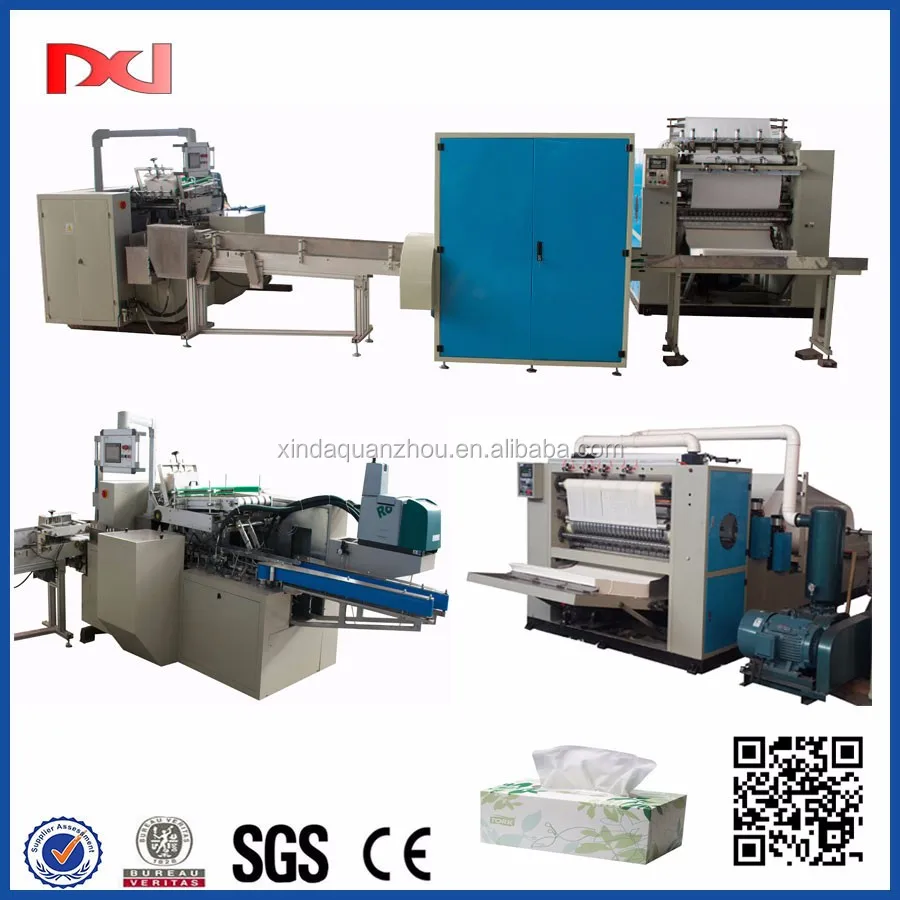

CIL-FT-A-D  Full  Automatic  Facial Tissue Production Line

which composed of one set of CIL-FT-20A Full-automatic box-drawing facial tissue machine, one set of CIL-FT-281 Facial tissue machine and one set of CIL-FT-258 Full-automatic high-speed carton packing machine.
CIL-FT-A-D Facial tissue production line combined embossing, folding, counting, match with high-speed paper cutting machine, conveying, automatic box, automatic seal box. It much save manpower. This machine adopt PLC computer programming technology, frequency control, servo feeding control, match with touch type screen man-machine interface operating system. The whole machine adopts synchronous belt drive. Folding machine can match with automatic tension control system, to suitable various kind of raw material, greatly improve quality and efficiency. This production enjoy with easy operation flow, high production efficiency, perfect product , moreover, it can match with full-automatic heat shrink packaging machine.

CIL-FT-258 Full-automatic high-speed carton packing machine.
Speed of packing : 35-100 boxes/min

Product Name
Full Automatic Facial Tissue Production Line
Speed
100m/min;60-70boxes per min
Width of jumbo roll
1000-1600mm
Size of production(mm)
200x200mm ,100x200mm (other sizes ,please specify)
Pneumatic system
3P air compressor, Min. pressure 5kg/cm2 Pa(prepared by buyer )
Power
20-30Kw ,380V ,50/60HZ
Overall size
13x10x2m
Weight
8000KG

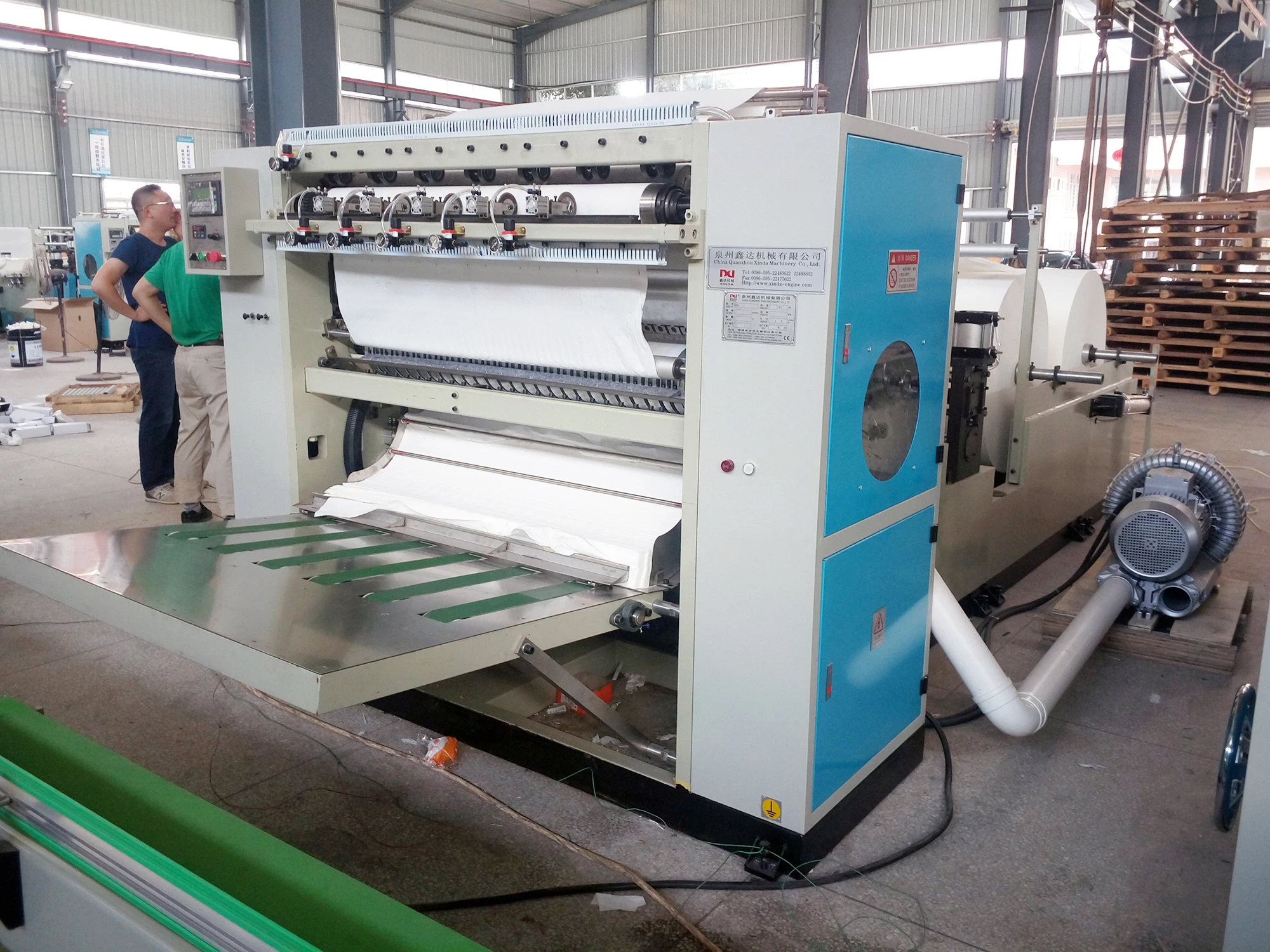

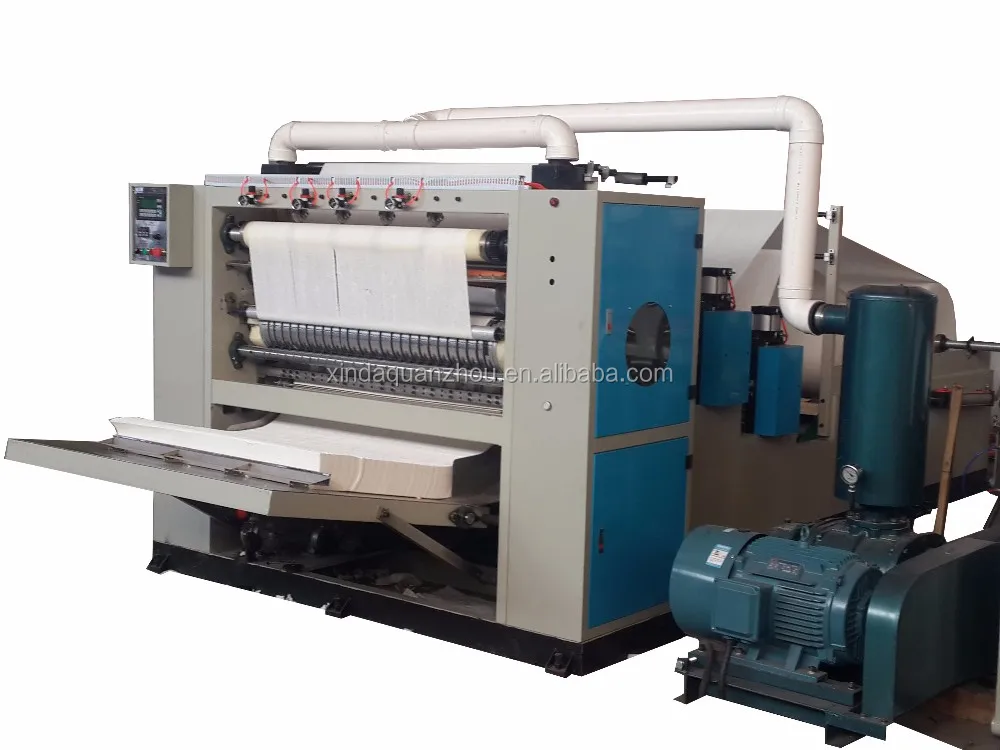

NO1.CIL-FT-20A Full-automatic box-drawing facial tissue machine(take 7L for example)

final product size (mm)
200×200±2mm(Other specification, please specify)
Diameter of jumbo roll(mm)
1200(Other specification, please specify)
Core inner dia. of jumbo roll
76.2mm(Other specification, please specify)
Production speed
60-100 meter/min
Power
3 phase, 380V/50HZ,
Cutting system
point cut by pneumatic type
Vacuum system
22 KW Roots vacuum system
Pneumatic system
3P Air compressor ,minimum pressure 5kg/cm2Pa( prepared by customer)
Host power
7.5 KW
Overall dimension
6000×2600×1920 mm
Machine weight
3T

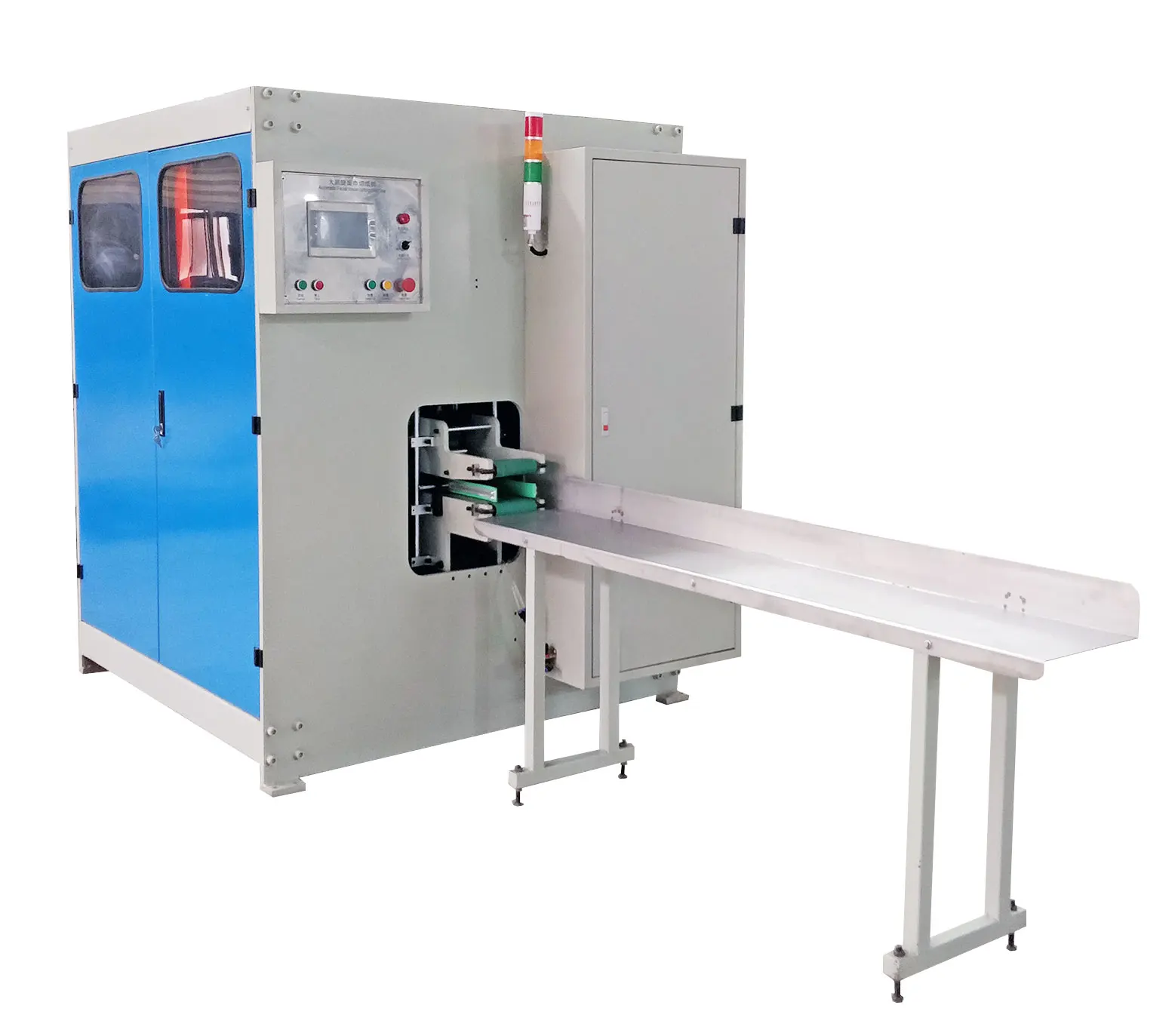

NO2.FT-281 Facial tissue machine

Specification of jumbo roll(mm)
Width 45-110mm adjustable,thickness 80-120mm adjustable
Cutting specification
Adjustable
Production speed
50-100 cut/minute
Power
3 phase, 380V/50HZ,
Cutting system
610mm round knife
Pneumatic system
3P Air compressor ,minimum pressure 5kg/cm2 Pa( prepared bycustomer)
Host power
6.4 KW
Overall dimension
6800×1500×1920 mm
Machine weight
2T

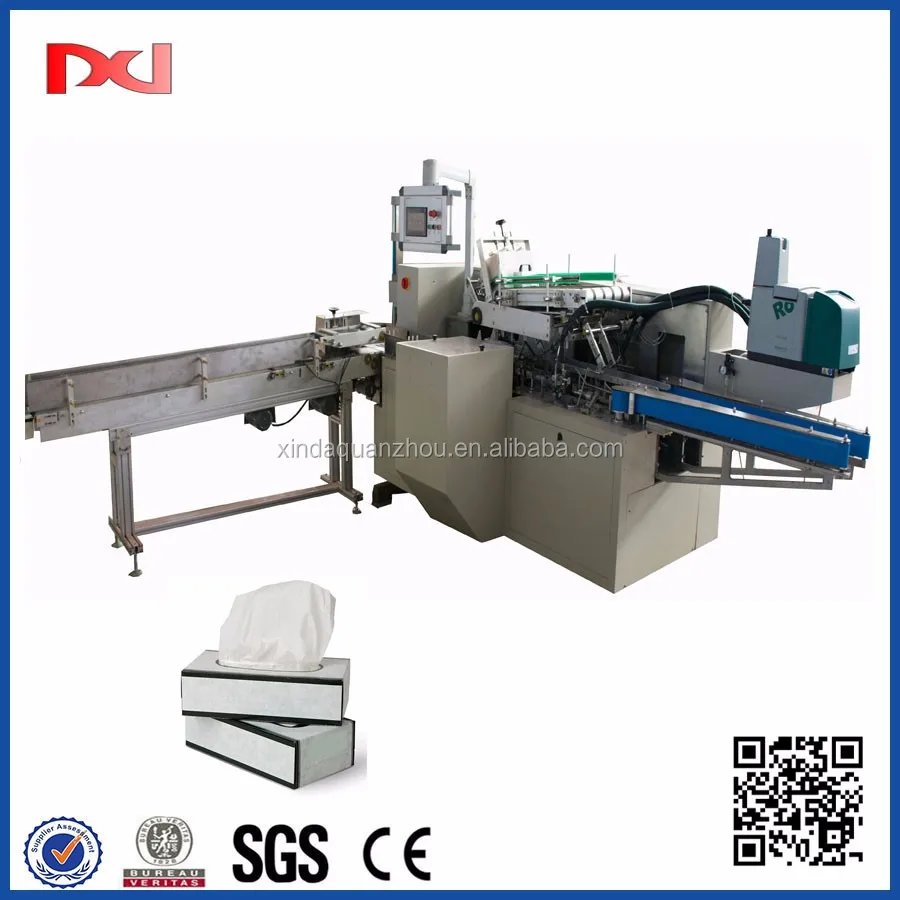

NO3.CIL-FT-258 Full-automatic high-speed carton packing machine

Packing speed
50-80(boxes/minute)
Hot melt machine power
2.32KW
Main machine
L3100×W1550×H1810mm
Conveying mechanism
L4000×W660×H1280mm
Machine weight
1500Kg
Maximum packing specification
L240mm×W120mm×H90mm
Our Service

Facial Tissue Production Line

Passed the ISO CE quality system

Toilet Paper Production Line

Passed the ISO CE quality system

Napkin Paper Making Machine

Passed the ISO CE quality system

Our Company
Packing & Delivery

Packing Details  : Packing Wooden Cases

Delivery Details : 60 days after order

1. Special logistics packaging

2. Suitable wooden case size

3. Fork Loading

Our Certifications

Our Clients

FAQ

Q: How about your machinery quality?

A: Xinda is a mature brand in China,more than 20 years manufacturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2000 System,and can match all the CE
standard or more strict standard.Our paper machine is runing well in more.

Q: How we visit your factory and what will be the procedure?

A: Our factory located in Quanzhou, Fujian province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou,1.5hours from shanghai and 2 hours from Beijing. We will pick you up from airport as well as the train station. Welcome you and your team to visit us at any time!

Q: Why buy machine from Quanzhou Xinda Machinery Co,Ltd?

A:
① Good quality of machine with reasonable price.
② Good service: Any question from customer will be reply within 24 hours. For all the machines we sell, we will offer one-five years guarantee for free and all life maintenance.
③ We will also send you a DVD for free. It will contribute a lots to the operation of the machine
④ After the machines arrive, the sellers shall send technician to install the production line(depends on you request).

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Send your Inquiry Details in the Below for More information & Video & Specifics of Machine, Click “ Send ” Now
Welcome to contact us to get more details !
We can design machine for you
